Oil leaks in driveline components are something truck owners should never ignore. What might start as a small drip can eventually lead to low oil levels, overheating components, and serious drivetrain damage.
Recently we had an Iveco Powerstar in the workshop with exactly that issue.
The Complaint
The customer noticed oil leaking from the front diff area. After a closer inspection, we could see two separate leaks:
- The front differential itself was leaking
- The power divider was leaking where it joins the front diff
This area of the driveline takes a lot of load, and because the two components are bolted together, the only way to repair the leaks properly is to remove the entire assembly.
Removing the Front Diff Assembly
To fix the problem correctly, we removed the complete front diff and power divider assembly together.
Once removed from the truck, the unit was placed in a cradle so we could safely work on it.

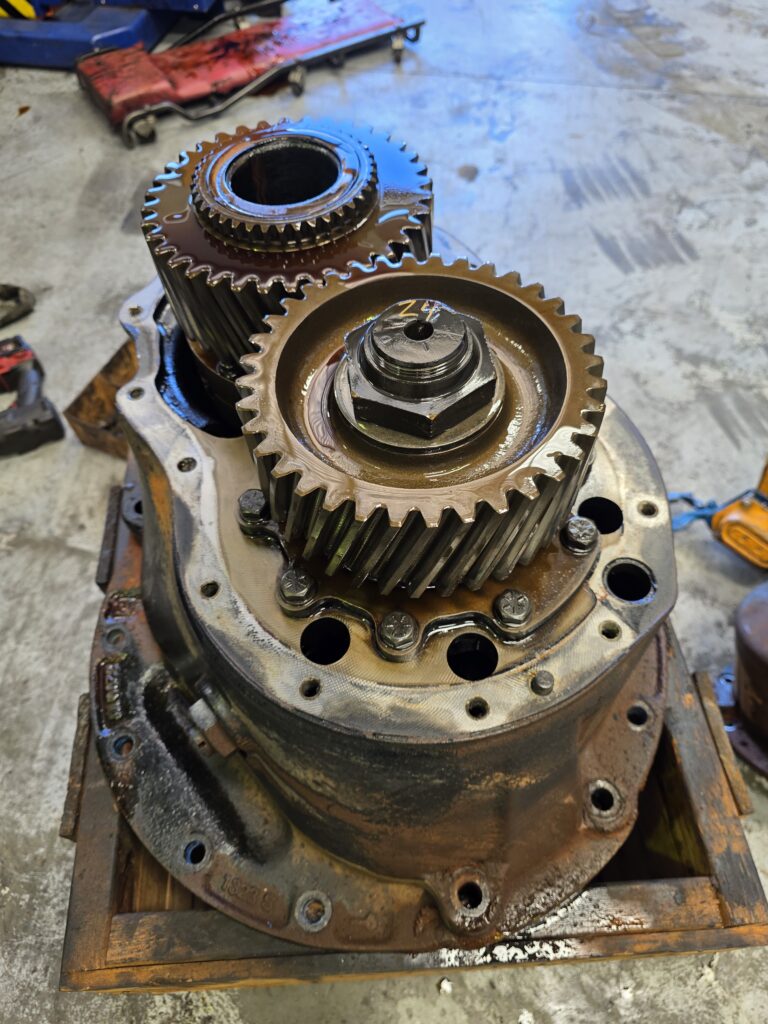

From there we separated the power divider from the front differential housing.
Cleaning and Resealing
With the components apart, we were able to properly clean both mating surfaces. This step is critical, because even small amounts of old gasket material or oil residue can cause a new seal to fail.
Once cleaned, we:
- Resealed the mating surfaces between the power divider and front diff
- Replaced the leaking input nut seal
- Checked the sealing surfaces and components for wear
Reassembly and Installation
Once the components were resealed, the power divider and front diff were reassembled and the entire unit was installed back into the truck.
The diff was bolted back into place, seals checked, and everything tightened to specification.
With fresh seals and proper assembly, the driveline was ready to go back to work — without the oil leak.
The Takeaway
Oil leaks in drivetrain components might seem small at first, but they can quickly lead to bigger problems if oil levels drop or contaminants enter the system.
Fixing the issue properly often means removing components and resealing them correctly rather than attempting a quick external fix.
